We moved to a new flat. I am not sure how this is all related to the
issues that I am about to explain, but let's go.
So moved all our stuff over to the new flat. As one of the last steps
I grabbed all the smart bulbs and switches, and twisted them in.

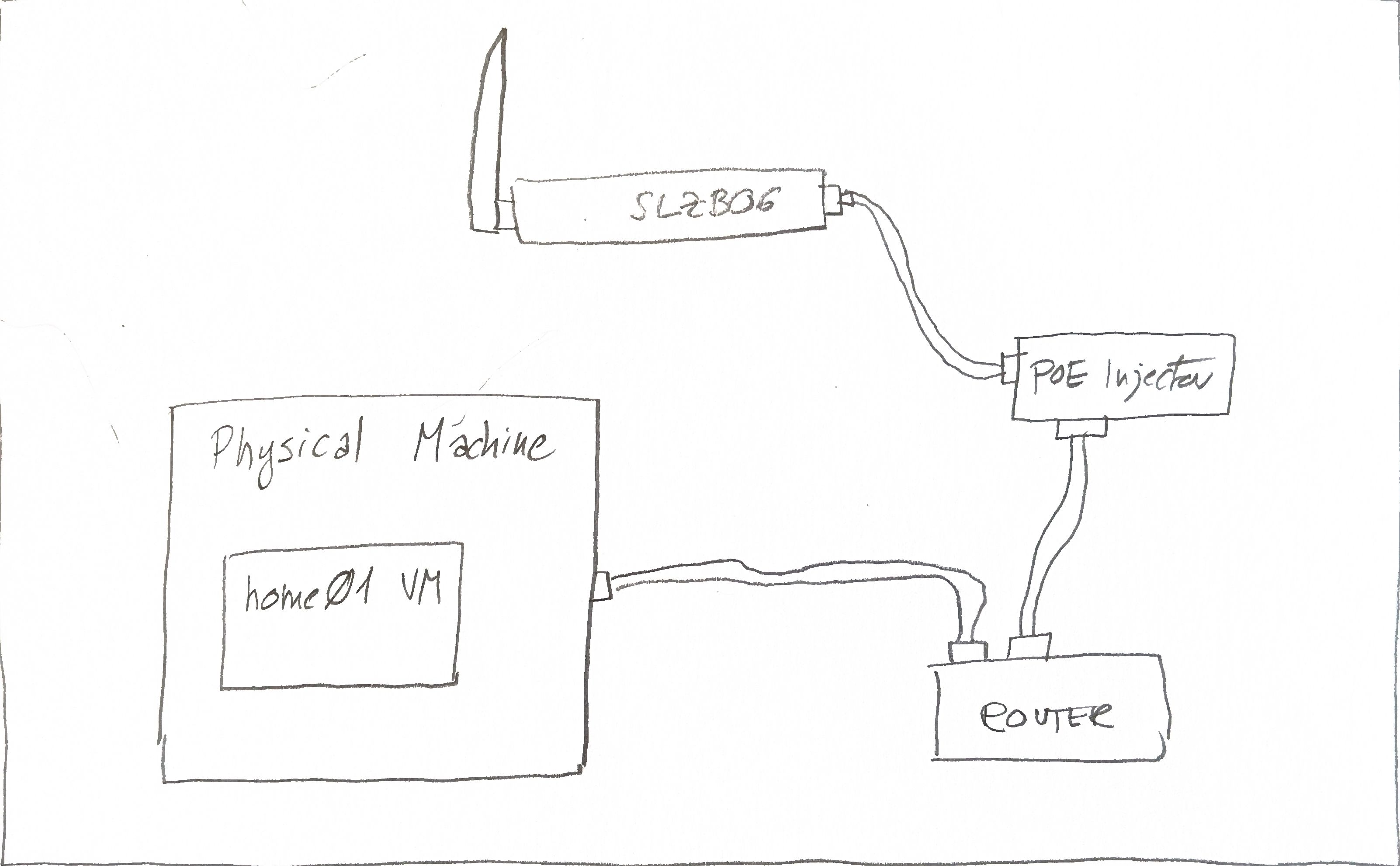

Started up my vm (home01) and all the buttons worked. This was the setup
at that time:
I suddenly realised that sometimes the zigbee2mqtt serive is loosing connection
with the SLZB06. I had to re-start z2m. I then looked at the web interface
of the coordinator, and started flasing new firmwares. I ended up flashing the
latest firmwares:
Coordinator (CC2652P): 20240710
I used this version because the newer ones were marked as "Dev firmware".
SLZB OS: v3.3.1
But I still encountered restarts, and also seen all my devices lost.

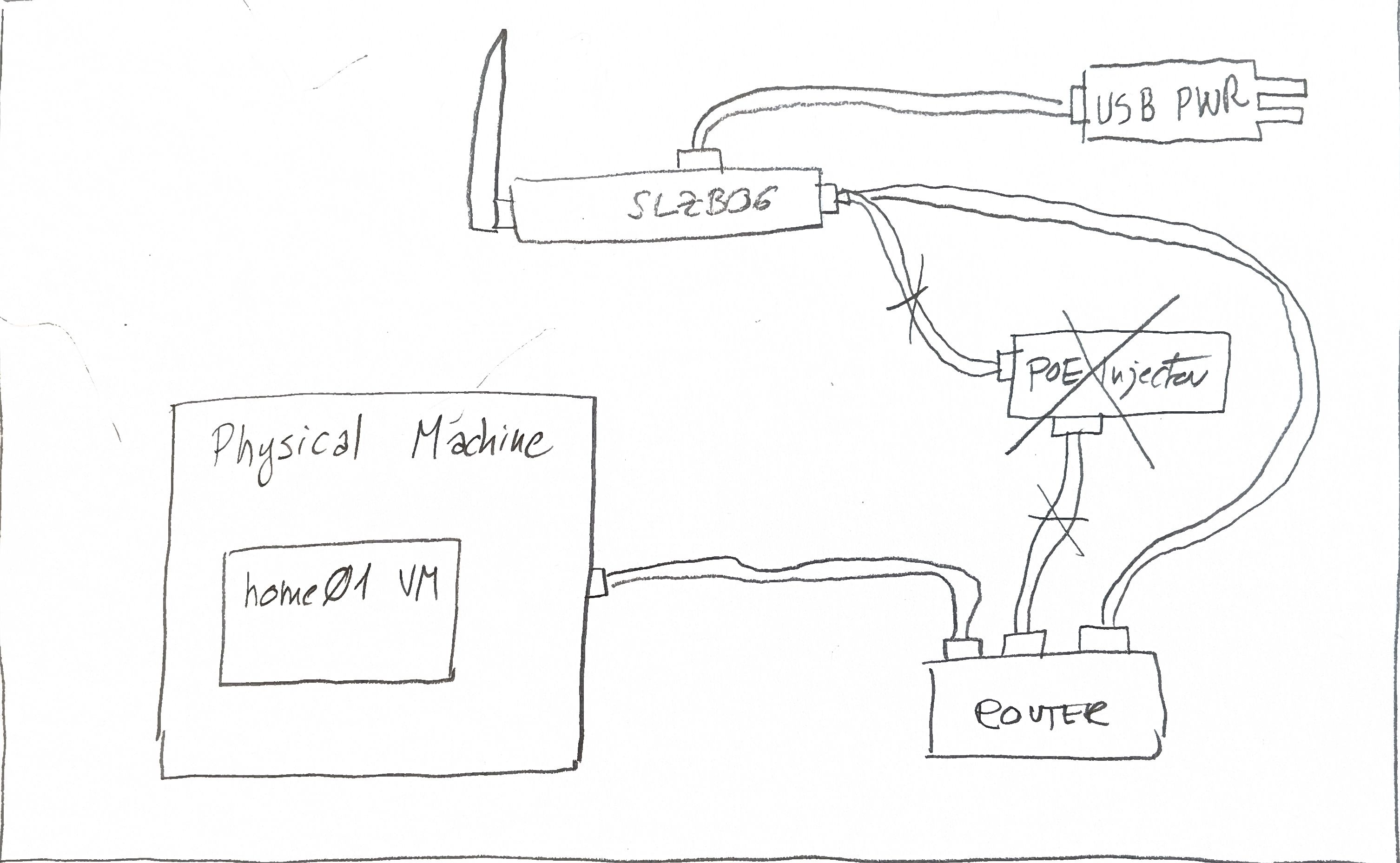

So then I decided to use a USB plug to power SLZB06:
But I think I still need to deal with lost devices. So first I will want to
re-create the internal DB. But before that, let's see what I have if I started
the z2m service:
May 02 08 : 57 : 14 home01 systemd [ 1 ]: Started zigbee2mqtt .
May 02 08 : 57 : 14 home01 node [ 7389 ]: Starting Zigbee2MQTT without watchdog .
May 02 08 : 57 : 14 home01 node [ 7389 ]: Zigbee2MQTT requires node version ^ 20.15 . 0 || ^ 22.2 . 0 || ^ 24 , you are running v25 . 9.0 !
May 02 08 : 57 : 15 home01 node [ 7389 ]: [ 2026 - 05 - 02 08 : 57 : 15 ] info : z2m : Logging to console , file ( filename : log . log )
May 02 08 : 57 : 15 home01 node [ 7389 ]: [ 2026 - 05 - 02 08 : 57 : 15 ] info : z2m : Starting Zigbee2MQTT version 2.9 . 2 ( commit #
May 02 08 : 57 : 15 home01 node [ 7389 ]: )
May 02 08 : 57 : 15 home01 node [ 7389 ]: [ 2026 - 05 - 02 08 : 57 : 15 ] info : z2m : Starting zigbee - herdsman ( 10.0 . 5 )
May 02 08 : 57 : 15 home01 node [ 7389 ]: [ 2026 - 05 - 02 08 : 57 : 15 ] info : zh : zstack : znp : Opening TCP socket with 192.168 . 0.220 : 6638
May 02 08 : 57 : 15 home01 node [ 7389 ]: [ 2026 - 05 - 02 08 : 57 : 15 ] info : zh : zstack : znp : Socket connected
May 02 08 : 57 : 15 home01 node [ 7389 ]: [ 2026 - 05 - 02 08 : 57 : 15 ] info : zh : zstack : znp : Socket ready
May 02 08 : 57 : 15 home01 node [ 7389 ]: [ 2026 - 05 - 02 08 : 57 : 15 ] info : zh : zstack : znp : Writing CC2530 / CC2531 skip bootloader payload
May 02 08 : 57 : 16 home01 node [ 7389 ]: [ 2026 - 05 - 02 08 : 57 : 16 ] info : zh : zstack : znp : Skip bootloader for CC2652 / CC1352
May 02 08 : 58 : 08 home01 node [ 7389 ]: [ 2026 - 05 - 02 08 : 58 : 08 ] info : z2m : zigbee - herdsman started ( restored )
May 02 08 : 58 : 08 home01 node [ 7389 ]: [ 2026 - 05 - 02 08 : 58 : 08 ] info : z2m : Coordinator firmware version : '{"meta":{"maintrel":1,"majorrel":2,"minorrel":7,"product":1,"revision":20240710,"transportrev":2},"type":"ZStack3x0"}'
May 02 08 : 58 : 08 home01 node [ 7389 ]: [ 2026 - 05 - 02 08 : 58 : 08 ] info : z2m : bathroom - switch ( 0x8c65a3fffe982251 ): Not supported ( Unknown )
May 02 08 : 58 : 08 home01 node [ 7389 ]: [ 2026 - 05 - 02 08 : 58 : 08 ] info : z2m : Currently 1 devices are joined .
May 02 08 : 58 : 08 home01 node [ 7389 ]: [ 2026 - 05 - 02 08 : 58 : 08 ] info : z2m : Connecting to MQTT server at mqtt : // localhost
May 02 08 : 58 : 08 home01 node [ 7389 ]: [ 2026 - 05 - 02 08 : 58 : 08 ] info : z2m : Connected to MQTT server
May 02 08 : 58 : 08 home01 node [ 7389 ]: [ 2026 - 05 - 02 08 : 58 : 08 ] info : z2m : mqtt : MQTT publish : topic 'zigbee2mqtt/bridge/state' , payload '{"state":"online"}'
May 02 08 : 58 : 08 home01 node [ 7389 ]: [ 2026 - 05 - 02 08 : 58 : 08 ] info : z2m : mqtt : MQTT publish : topic 'zigbee2mqtt/bathroom-switch' , payload '{"battery":100,"update_available":true}'
May 02 08 : 58 : 08 home01 node [ 7389 ]: [ 2026 - 05 - 02 08 : 58 : 08 ] info : z2m : Zigbee2MQTT started !
And tbh, it took a lot of time to start.
Couple of warnings:
- I am not running the correct node version (25 looks too much)
Now I will try to check what could be wrong:
First, I am doing a coordinator check as recommended
[ matelakat@home01 ~ ] $ mosquitto_pub - t 'zigbee2mqtt/bridge/request/coordinator_check' - m '{}'
Response (from logs)
May 02 09 : 02 : 16 home01 node [ 7389 ]: [ 2026 - 05 - 02 09 : 02 : 16 ] info : z2m : mqtt : MQTT publish : topic 'zigbee2mqtt/bridge/response/coordinator_check' , payload '{"data":{"missing_routers":[]},"status":"ok"}'
Ok, that's good. Now I will try to re-set the db.
Files live under /var/lib/zigbee2mqtt/
[ root @ home01 / ] # cd
[ root @ home01 ~ ] # pwd
/ root
[ root @ home01 ~ ] # mkdir backup
[ root @ home01 ~ ] # cd backup/
[ root @ home01 backup ] # mv /var/lib/zigbee2mqtt/database.db ./
[ root @ home01 backup ] # mv /var/lib/zigbee2mqtt/coordinator_backup.json ./
[ root @ home01 backup ] # mv /var/lib/zigbee2mqtt/state.json ./
Then started the service:
May 02 09 : 17 : 51 home01 systemd [ 1 ]: Started zigbee2mqtt .
May 02 09 : 17 : 51 home01 node [ 7663 ]: Starting Zigbee2MQTT without watchdog .
May 02 09 : 17 : 51 home01 node [ 7663 ]: Zigbee2MQTT requires node version ^ 20.15 . 0 || ^ 22.2 . 0 || ^ 24 , you are running v25 . 9.0 !
May 02 09 : 17 : 52 home01 node [ 7663 ]: [ 2026 - 05 - 02 09 : 17 : 52 ] info : z2m : Logging to console , file ( filename : log . log )
May 02 09 : 17 : 52 home01 node [ 7663 ]: [ 2026 - 05 - 02 09 : 17 : 52 ] info : z2m : Starting Zigbee2MQTT version 2.9 . 2 ( commit #
May 02 09 : 17 : 52 home01 node [ 7663 ]: )
May 02 09 : 17 : 52 home01 node [ 7663 ]: [ 2026 - 05 - 02 09 : 17 : 52 ] info : z2m : Starting zigbee - herdsman ( 10.0 . 5 )
May 02 09 : 17 : 52 home01 node [ 7663 ]: [ 2026 - 05 - 02 09 : 17 : 52 ] info : zh : zstack : znp : Opening TCP socket with 192.168 . 0.220 : 6638
May 02 09 : 17 : 52 home01 node [ 7663 ]: [ 2026 - 05 - 02 09 : 17 : 52 ] info : zh : zstack : znp : Socket connected
May 02 09 : 17 : 52 home01 node [ 7663 ]: [ 2026 - 05 - 02 09 : 17 : 52 ] info : zh : zstack : znp : Socket ready
May 02 09 : 17 : 52 home01 node [ 7663 ]: [ 2026 - 05 - 02 09 : 17 : 52 ] info : zh : zstack : znp : Writing CC2530 / CC2531 skip bootloader payload
May 02 09 : 17 : 53 home01 node [ 7663 ]: [ 2026 - 05 - 02 09 : 17 : 53 ] info : zh : zstack : znp : Skip bootloader for CC2652 / CC1352
May 02 09 : 18 : 13 home01 node [ 7663 ]: [ 2026 - 05 - 02 09 : 18 : 13 ] info : zh : controller : Wrote coordinator backup to '/var/lib/zigbee2mqtt/coordinator_backup.json'
May 02 09 : 18 : 14 home01 node [ 7663 ]: [ 2026 - 05 - 02 09 : 18 : 14 ] info : z2m : zigbee - herdsman started ( resumed )
May 02 09 : 18 : 14 home01 node [ 7663 ]: [ 2026 - 05 - 02 09 : 18 : 14 ] info : z2m : Coordinator firmware version : '{"meta":{"maintrel":1,"majorrel":2,"minorrel":7,"product":1,"revision":20240710,"transportrev":2},"type":"ZStack3x0"}'
May 02 09 : 18 : 14 home01 node [ 7663 ]: [ 2026 - 05 - 02 09 : 18 : 14 ] info : z2m : Currently 0 devices are joined .
May 02 09 : 18 : 14 home01 node [ 7663 ]: [ 2026 - 05 - 02 09 : 18 : 14 ] info : z2m : Connecting to MQTT server at mqtt : // localhost
May 02 09 : 18 : 14 home01 node [ 7663 ]: [ 2026 - 05 - 02 09 : 18 : 14 ] info : z2m : Connected to MQTT server
May 02 09 : 18 : 14 home01 node [ 7663 ]: [ 2026 - 05 - 02 09 : 18 : 14 ] info : z2m : mqtt : MQTT publish : topic 'zigbee2mqtt/bridge/state' , payload '{"state":"online"}'
May 02 09 : 18 : 14 home01 node [ 7663 ]: [ 2026 - 05 - 02 09 : 18 : 14 ] info : z2m : Zigbee2MQTT started !
Now I will allow devices to join:
[ matelakat@home01 ~ ] $ mosquitto_pub - t 'zigbee2mqtt/bridge/request/permit_join' - m '{"time": 254, "device": "bathroom-switch"}'
May 02 09 : 20 : 37 home01 node [ 7663 ]: [ 2026 - 05 - 02 09 : 20 : 37 ] error : z2m : Request 'zigbee2mqtt/bridge/request/permit_join' failed with error : 'Device ' bathroom - switch ' does not exist'
May 02 09 : 20 : 37 home01 node [ 7663 ]: [ 2026 - 05 - 02 09 : 20 : 37 ] info : z2m : mqtt : MQTT publish : topic 'zigbee2mqtt/bridge/response/permit_join' , payload '{"data":{},"error":"Device ' bathroom - switch ' does not exist","status":"error"}'
Ok, trying it without friendly name
[ matelakat@home01 ~ ] $ mosquitto_pub - t 'zigbee2mqtt/bridge/request/permit_join' - m '{"time": 254}'
And after that, I pushed a button on the ikea switch, and also on the sonoff buttons.
I got them paired.
Ok, let me try vallhorn. Clanker says that I need to push the pairing button 4 times within 5 seconds.
then red light indicates pairing mode. That went well:
May 02 15:51:21 home01 node[7663]: [2026-05-02 15:51:21] info: zh:controller: Succesfully interviewed '0xf84477fffe7df6d3'
May 02 15:51:21 home01 node[7663]: [2026-05-02 15:51:21] info: z2m: Successfully interviewed 'corridor_motion_sensor', device has successfully been paired
Now the lights.
I will need to turn them on and off 6 times. Let me try doing that. Worked. Basically
I always need to make sure I enter the system to pairing mode.
The other smart bulbs went on and off as well.
